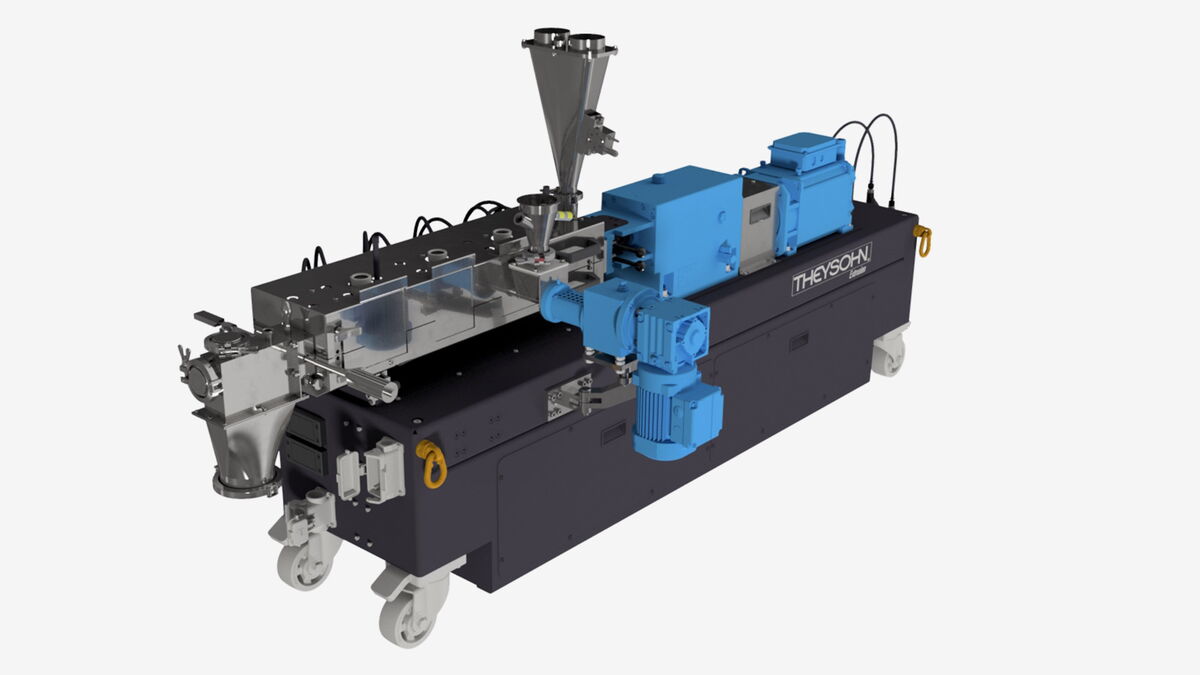

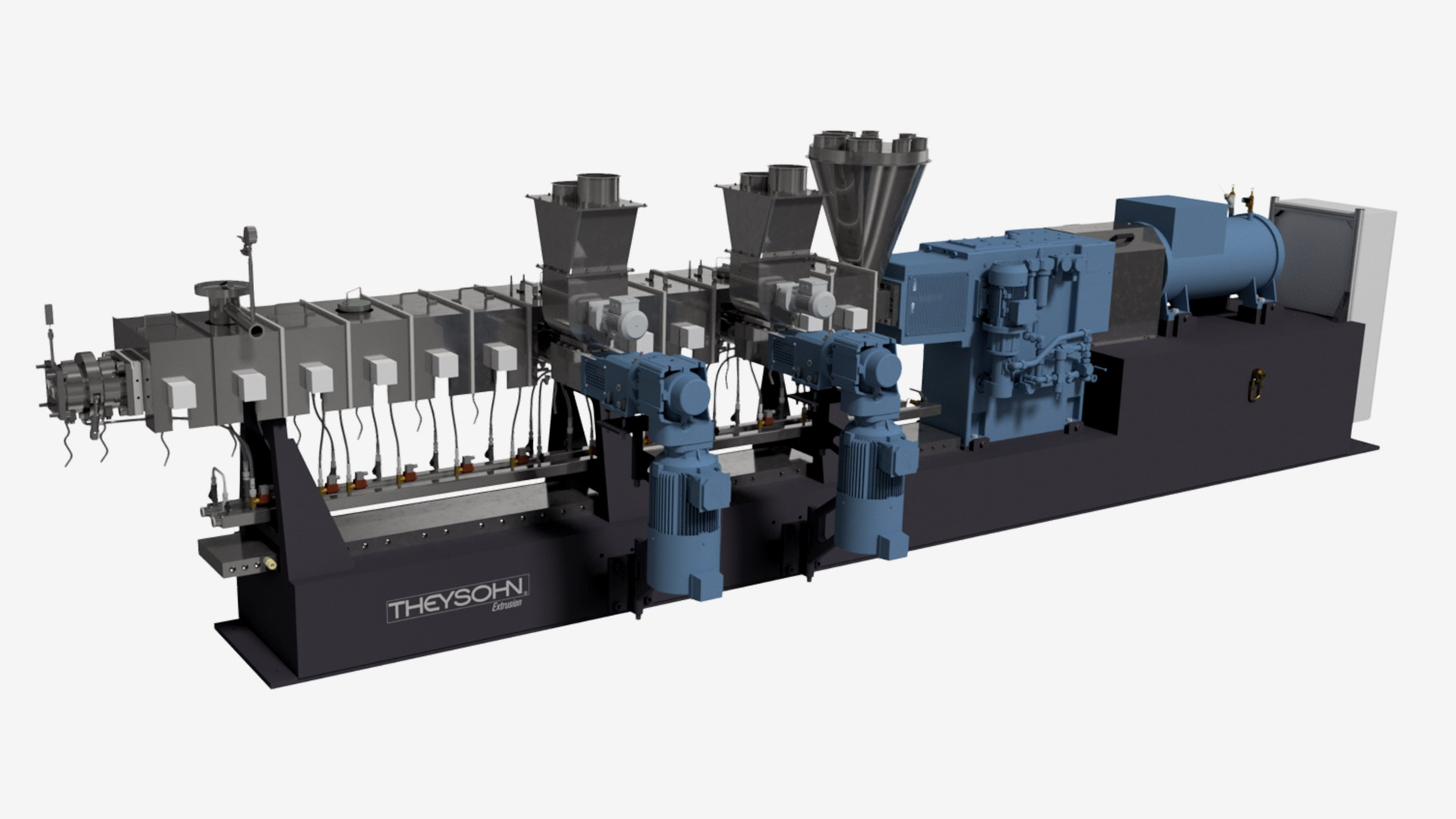

Co-rotating twin-screw extruder TSK-HV

Description

Highest free volume

TSK-HV, the high-volume extruder from Theysohn - with a diameter ratio of Do/Di 1.83 it is ideal for products with a light bulk weight and low energy requirement, as well as for shear-sensitive materials. The large free volume guarantees an extra advantage in output for bulky products and provides the user with added value due to an extended production window.

The TSK-HV provides the user with the largest-possible added value for that extra output with an extended production window. The Theysohn TSK-HV Compounder is based on the successful TSK Compounder and impresses with its excellent process design allowing it to be used for all compounding tasks.

Features

  • Equipment and technology based on the well proved and reliable TSK twin-screw extruder
  • Ensures compliance of limit values under sensitive process conditions
  • Screw diameter 20 – 212 mm
  • Torque up to 13,7 Nm/cm³
  • Screw rotation speed up to 1200 min (-1)
  • Processing length up to 80D
  • Modular, segmented design of barrel sections and screw shafts for maximum flexibility
  • Excellent long-life cycle due to abrasion, adhesive and corrosion resistant materials
  • Intensive cooling of extruder barrels by optimized cooling system, also at high screw speed
  • Energy efficient design by state-of-the-art gear boxes and heaters
  • State-of-the-art control concepts and equipment
  • A wide range of accessories, e.g. side-feeders, vertical or horizontal degassing/vent stuffer, barrel cooling unit are available

Application

  • Filled and reinforced plastics
  • Production of color masterbatch, coloring of polyolefins
  • Cable compounds
  • PVC compounds
  • Hotmelt
  • Alloying of compounds
  • Degassing tasks
  • Applications in the area of reactive extrusion
  • Starch, Cereals
  • Food and non food extrusion
  • Recycling
  • Other applications
